Photoluminescent & UV Pigments



Allureglow utilizes a range of cost efficient and unique premium grade strontium aluminate based photoluminescent pigments that are now revolutionizing the world of photoluminescence. Advantages of these crystals include the brightness; the luminosity is much higher than any other form of crystal. This is because the crystals are manufactured to our Patented Formulation, using only premium grade raw materials and our processing methods are designed to give the utmost purity to the finished product with only minimal grinding of the crystals.



The pigment used in our products are believed to be a world first in having superior performance of a strontium type compound, that can be supplied as water or solvent based and dispersed in paints, inks, coatings, ceramic glazes and extruded into most plastics and resins. The water proof pigment does not lose its glow in water or in water-based formulations. There is a wide range of particle sizes available, which enable its use in applications where very fine particles are required or where large particle sizes are suitable. Just let us know what your application is and we will recommend the most suitable pigment size.



Crystal appearance in daylight is a pale green color; however our Sky Blue, Purple and White will have a whitish daylight color. The level of daylight color varies due to particle size and performance grade.



Due to the unique chemistry and crystal structure of our pigments, when formulated correctly, the inherent brightness can be significantly multiplied. This has enabled products to be developed that exceed all of the most stringent standards for emissions, such as New York City’s recent RS-6-1 rule for photoluminescent egress path markings, IMO, ASTM, ISO and PSPA.



Allureglow™ Photluminescent Pigments are the industry leader in every measurable aspect. These pigments absorb light from sunlight, shielded daylight, or artificial light, and then emit this light energy as visible light when placed in the dark. The range of pigments include the yellow/green and aqua/blue glow pigments which are the industry standard. These are not novelty items but high performance pigments designed for commercial and safety applications. Special grades from as small as 5 microns to photoluminescent grit sand of 450 microns are available to meet any requirement. There is a wide range of colors available as well. Pigments are available for water based applications as well as solvent or oil based applications.



Allureglow™ UV or Security Pigments (black light pigments, also known as invisible pigments) which are used widely in the Security and Anti-Counterfeiting efforts throughout the world. Thery are also available for special effects applicatons.



All of our pigments are non-radioactive and non-toxic and suitable for both indoor and outdoor use. All of our pigment specifications are listed at the bottom of this page.

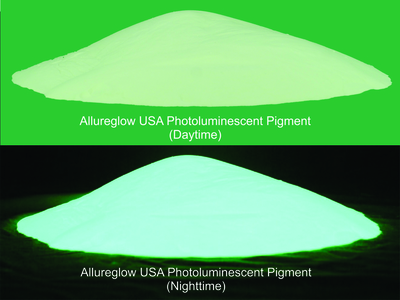

The photos below are of our water based pigment, the photo on the left was taken in daylight and the one on the right in total darkness.

The photos below are examples of the different colors available in our pigments

Click on the Pigment Part Number to go to the downloadable Technical Data Sheet

Click on the MSDS to go to the Material Safety Data Sheet for our Photoluminescent Pigments. The MSDS for the UV Pigments are listed next to the individual pigments.







Allureglow™

 Part Number

Glow Color

Particle Size

(microns)

Afterglow 10 Minutes

(mcd/m²)

Afterglow 60 Minutes

(mcd/m²)

Solvent Based Pigments

HV-8A

Green

85-100

763

74

HV-8B

Green

 65-85

682

65

HV-8C

Green

35-65

630

60

HV-8D

Green

20-45

546

52

HV-8E

Green

10-25

294

28

HV-9B

Green

 65-85

859

82

HV-9D

Green

20-45

697

68

LV-8B

Aqua

35-65

428

54

LV-8D

Aqua

20-45

266

32

LV-8E

Aqua

10-25

197

24

TV-8B

Sky Blue

35-65

389

37

TV-8D

Sky Blue

20-45

237

26

TV-8E

Sky Blue

10-25

178

20

PV-8B

Purple

65-85

32

3

PV-8D

Purple

20-45

25

2

RO-8C

Orange

35-65

129

14

RP-8D

Red

20-45

87

8

WP-8C

White

25-55

174

18

Water Based Pigments



HV-8AK

Green

85-100

763

74

HV-8BK

Green

65-85

682

65

HV-8CK

Green

35-65

630

60

HV-8DK

Green

20-45

546

52

HV-8EK

Green

10-25

294

28

HV-9BK

Green

65-85

859

82

HV-9DK

Green

20-45

697

68

 LV-8BK

Aqua

35-65

428

54

 LV-8DK

Aqua

20-45

266

32

 LV-8EK

Aqua

10-25

197

24

TV-8BK

Sky Blue

35-65

389

37

TV-8DK

Sky Blue

20-45

237

26

TV-8EK

Sky Blue

10-25

178

20

PV-8BK

Purple

65-85

32

3

PV-8DK

Purple

20-45

25

2

RO-8CK

Orange

35-65

129

14

RP-8DK

Red

20-45

87

8

WP-8CK

White

25-55

174

18

Glow Grit Sand

HV-8W

Green

350-450

Afterglow Time > 30 HOURS

LV-8W

Blue Green

350-450

Afterglow Time > 30 HOURS

UV or Black Light Security Pigments

Light Wave

MSDS

UV-R

Deep Red

625nm

 MSDS



UV-O

Orange

607nm

MSDS



UV-W

White

485nm

 MSDS



UV-P

Purple

395nm

 MSDS



UV-Y

Yellow

585nm

 MSDS



UV-B

Blue

450nm

 MSDS



UV-G

Green

515nm

 MSDS



UV-YG

Yellow Green

532nm

Contact us for TDS & MSDS



UV- BG

Blue Green

462nm

Contact us for TDS & MSDS

Daylight Glow Solvent Based

Particle Size

(microns)

Afterglow 10 Minutes

(mcd/m²)

Afterglow 60 Minutes

(mcd/m²)

S-4MR

Red

20-45

314

36

S-4MP

Peach

20-45

326

39

S-4MO

Orange

20-45

332

42

S-4MY

Yellow

20-45

351

45

S-4MG

Green

20-45

320

38

S-4MB

Blue

20-45

320

38



Go to the PSPA Standards Page to see how are products rate acording to the industry standards.
